STAINLESS STEEL CHANNEL DRAIN COVER
SUPPORTED ON PRIMED AND BLACK POWDER
COATED MILD STEEL SUPPORT WHICH IN TURN
RESTS ON SITE FORMED TRENCH DRAIN.
STAINLESS STEEL CRADLE TO
CHANNEL DRAIN. ADHERED TO
FORMED CHANNEL DRAIN. TO
ACCEPT SCREW FIXED CHANNEL
DRAIN COVER. CRADLE TO BE
INSTALLED AT 500mm CENTRES.
RUBBER SHIMS TO LEVEL
DRAINAGE COVER.
SHEET WATERPROOFING
MEMBRANE WPS-01.
COIR MATTING FINISH.
FL-35
FL-36
RIGID PIR INSULATION.
CELOTEX TB 4000 (or equal
approved)
STEEL SUPPORT BRACKET TO
FORM TILE EGDE TRIM
TILE FINISH LIN-01
POLYTHENE VAPOUR
BARRIER MEMBRANE

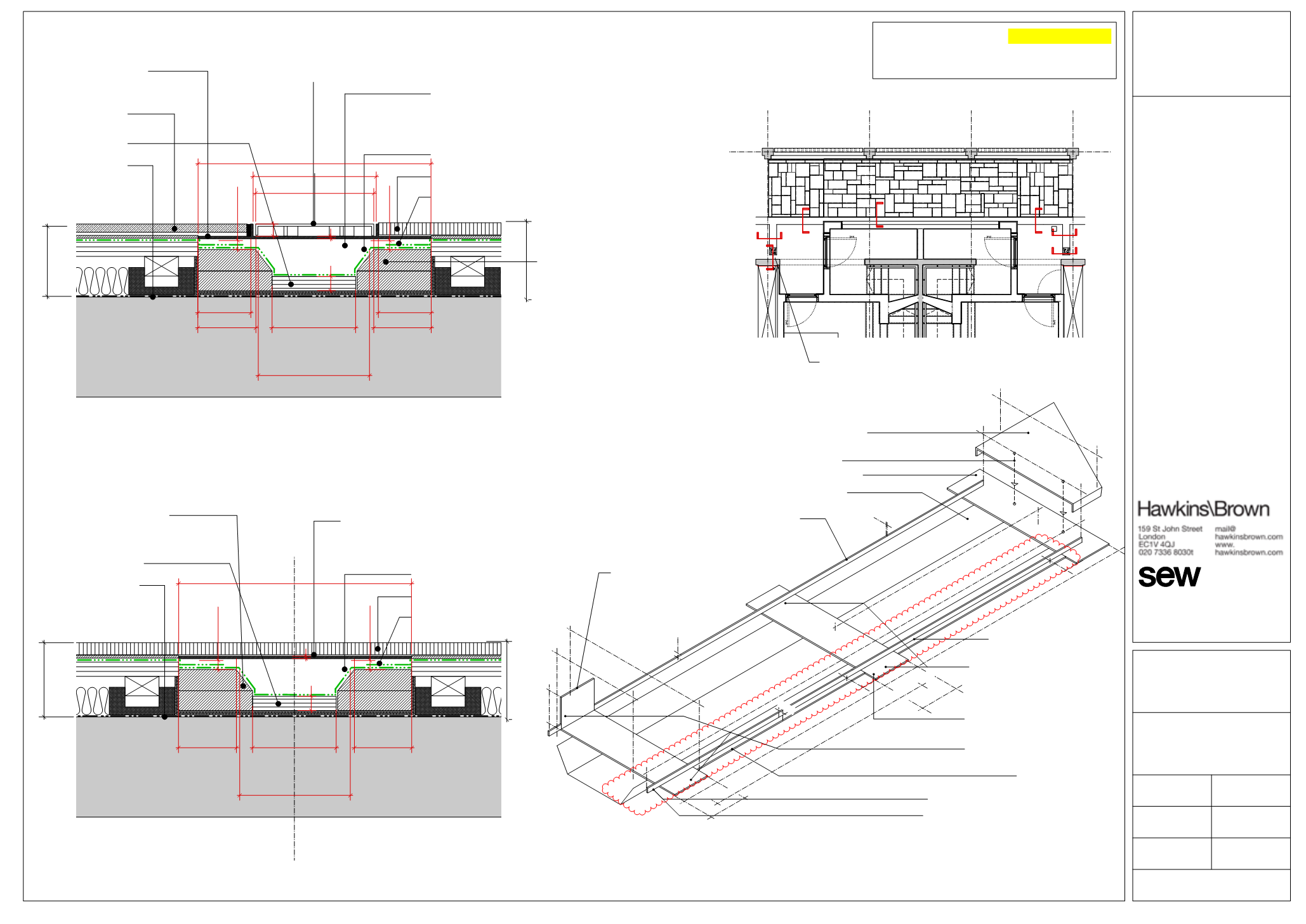

DETAIL 01 - CHANNEL DRAIN AT JUNCTION OF COIR MAT AND TILE.
300
150
12mm Rebate
155
140
15
6
100
18
12mm REBATE TO ALLOW
LAP ESHA UNIVERSAL.
12mm Rebate
NOTE:
ALL STEEL TO BE PRIMED
AND PAINTED BLACK.
NOTE:
ALL STEEL TO BE PRIMED
AND PAINTED BLACK.
75
75
72.5
72.5
TIMBER NOGGINGS TO PROVIDE
SUBSTRATE FOR PRIMED AND
PAINTED MILD STEEL BRACKET.
NOGGINGS CUT TO 45° FILLET END.
